Front:
M-2587
FORD MUSTANG-The car designed to be designed by you!

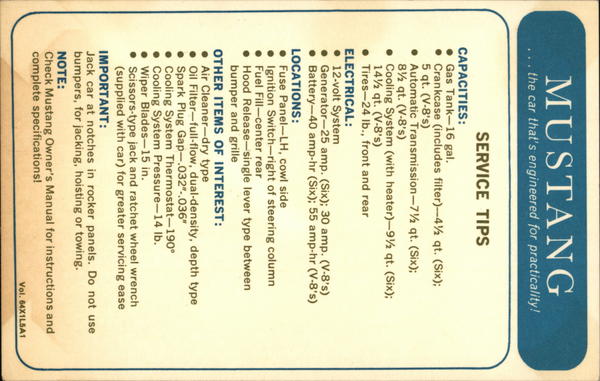

Back:
MUSTANG
the car that's engineered for practicality!
SERVICE TIPS
CAPACITIES:
Gas Tank-16 gal.
• Crankcase (includes filter)--472 qt. (Six);
5 qt. (V-8's)
• Automatic Transmission-742 qt. (Six);
872 qt. (V-8's)
Cooling System (with heater)-972 qt. (Six);
1472 qt. (V-8's)
• Tires-24 Ib., front and rear
ELECTRICAL:
• 12-volt System
• Generator-25 amp. (Six); 30 amp. (V-8's)
• Battery-40 amp-hr (Six); 55 amp-hr (V-8's)
LOCATIONS:
• Fuse Panel-LH, cowl side
• Ignition Switch-right of steering column
• Fuel Fill-center rear
Hood Release-single lever type between
bumper and grille
OTHER ITEMS OF INTEREST:
• Air Cleaner-dry type
• Oil Filter-full-flow, dual-density, depth type
Spark Plug Gap-.032"-.036"
Cooling System Thermostat-190°
• Cooling System Pressure-14 lb.
Wiper Blades-15 in.
Scissors-type jack and ratchet wheel wrench
(supplied with car) for greater servicing ease
IMPORTANT:
Jack car at notches in rocker panels. Do not use
bumpers, for jacking, hoisting or towing.
NOTE:
Check Mustang Owner's Manual for instructions and
complete specifications!
Vol. 64X1L5A1
